Products  -   SM  series   Metric Linear Precision Shafting

SM series Metric Precision Linear Shaft
Part Number
Dimensions and Specs
Machining Options
Machining Questionnaire
Complete Linear Shafting
Complete Round Rail Catalog
Product  Overview
Model Number: SM  series
Key Feature: Cut to Length Linear Shafts
Shaft Tolerance: Metric
Shaft Material: * 1566 Steel (60-65 Rc)
* 440C Stainless Steel (50-55 Rc)
* CR (67-72 Rc)
Shaft Diameters: 8 to 50 mm
Maximum Lengths: 202 inches
Matching Bearings: LBCM  series
Delivery: Stock
Get a Price            Get a CAD File

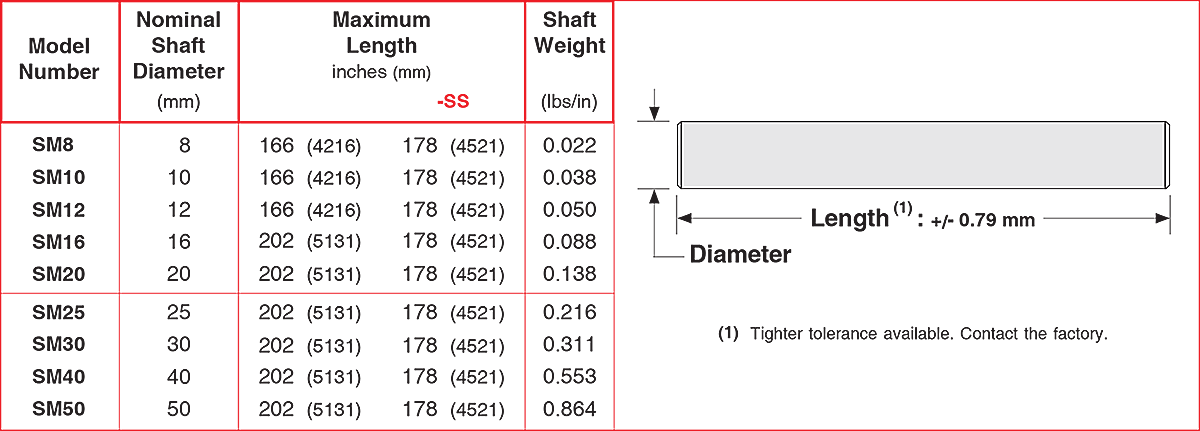

SM series Precision Linear Shafts

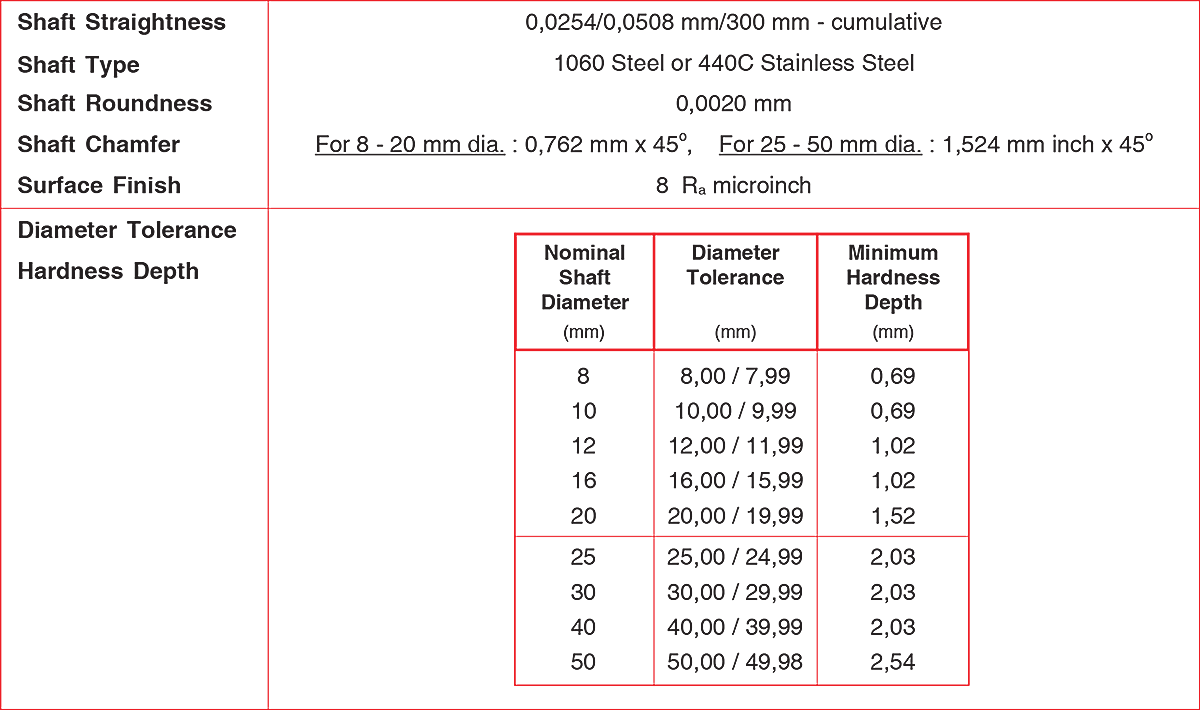

SM series Precision Linear Shafting
LinTech offers "Cut to length" Metric steel precision linear shafting. 1566 Carbon steel precision linear shafting is available from 8 to 50 mm diameters. Any length is available within .001 inch increments, up to the standard maximum stocked lengths. Any precision linear shaft can also be machined per drawings which are supplied by the customer (i.e. radial and coaxial holes, dowel joints, butt joints, reduced diameters, threaded ends, machined mounting holes, keyways, special chamfers, etc.).
PDF  File  Down  Loads
                   SM  Technical Information            Design Section Components
                   Entire Components Catalog            Components Service Manual
